Concurrent Processing of Table Partitions
Starting with TDM 9.5 onwards, the performance of table-level tasks has been improved by processing table partitions in parallel, significantly reducing execution time for large tables.
Each table partition is handled as a separate LUI by the task execution batch process for extract or extract & load processes.
TableLevelDefinitions MTable
The following fields have been added to the TableLevelDefinitions MTable to support table concurrency:
partition_count_source - Specifies the number of table partitions. Accepts either a numeric value or the name of a flow that dynamically returns the partition count.
partition_records_flow - Specifies the flow used to retrieve all records for a given table partition.
partition_flow_inputs - Defines the input parameters passed to the partition flows. Must be populated with a valid JSON object in the following format:
{"param_name1": "param_value1", "param_name2": "param_value2"}Examples:
{"columnName": "ALLERGY_ID"}If the partition flow has input parameters, the entire JSON is passed to the flowInputs external parameter. The partition flow can then use the relevant parameters from this JSON.
Table-Level Task Record Sampling – Displaying the Number of Partitions
Starting with TDM 10.1, you can extract a random sample of records from a table, with or without applying filter conditions. Sampling limits the number of records extracted from the table.
When configuring or running a table-level task, specify the number of table partitions to sample and the number of records to extract from each selected partition.
The available number of partitions is retrieved from TableLevelDefinitions.partition_count_source. If a Broadway flow is used to calculate the number of partitions for a table, you must enable the flow to display the partition count in the task.
To enable the flow, set the ENABLE_TABLE_LEVEL_PARTITION_FLOW parameter in the TDM_GENERAL_PARAMETERS TDM DB table to true.
If this parameter is not enabled, the partition count will not be displayed in the task, and the task creator/runner will not be able to see the maximum number of partitions available for selection during random sampling.
For more details about record sampling in table-level tasks, see Record Sampling in Table-Level Tasks.
TableLevelDefinitionsInterfacesTypesDefaults MTable

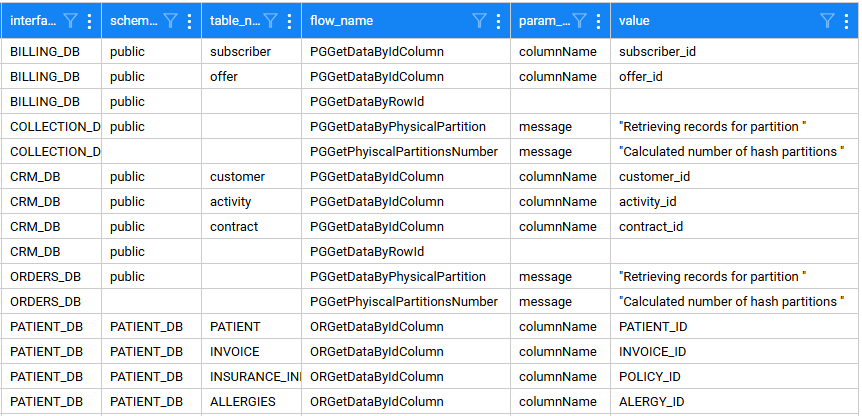

This table contains default flows for the following interface types:
PostgreSQL
Oracle
Copy the relevant record from this MTable into the TableLevelDefinitions MTable to use the default partitioning flows for these databases.
