Setup for PGSQL 13.3

When using TDM, you need to have a PostgreSQL database; this document describes how to install it.

TDM 7.xx is certified to be used with PGSQL 9.6 & 13.

• You can provide access to a PostgreSQL database if you have one. If you do not, one is provided with the TDM application.
• TDM requires login details with full create, delete and update privileges.
• It is also possibile to install a PostgreSQL database from the K2View predefined tarball file.
• The tarball provided by K2view is PGSQL 13.3 with the TLS mode enabled.
• The login details (user and password) are postgres, port is the default port (5432).

Important file locations are:

• Certification files: /opt/apps/pgsql/bin/.crt
• Configuration files: /opt/apps/pgsql/data

Hardware and OS Requirements

• RedHat/CentOs 8, AWS Linux 2
• 2 vCPU
• 8G RAM
• 100G free disk space, ensure it is assigned to /opt/apps/pgsql

Preliminary Steps

Add the following users:

mkdir -p /opt/apps
chmod 755 /opt/apps
useradd -m -d /opt/apps/pgsql pgsql

#### add the following packges for RHEL/CentOs 8
dnf install -y compat-openssl10 readline* glibc-locale-source glibc-langpack-en
ln -s /usr/lib64/libreadline.so /usr/lib64/libreadline.so.6

Setup

• Connect as the pgsql user on the server console

• Download or copy the tarball file from this link: pg13.3_tls_enabled.tar.gz.

• Download the cert file from this link: pg13.3_tls_cert.zip

• Copy the files to the Fabric instance that runs TDM, and place them here: $K2_HOME/.pg_cert/ (you will need to create this directory)

• Untar the pg13.3_tls_enabled.tar.gz as follows:

  tar -zxvf pg13.3_tls_enabled.tar.gz && bash -l

• Start the pgsql using the following commands:

  cd bin/
  ./pg_ctl -D /opt/apps/pgsql/data -l logfile start

• You can stop the pgsql using the following commands:

  ./bin/pg_ctl -D /opt/apps/pgsql/data -l logfile stop

• Run the following commands from the server console in order to create the TDM database and the tdm user:

  createuser tdm --login --superuser
  createdb -O tdm TDMDB
  echo "ALTER USER tdm WITH PASSWORD 'tdm';"| psql
  echo "ALTER USER postgres WITH PASSWORD 'postgres';"| psql
  echo "ALTER USER postgres WITH SUPERUSER;"| psql

• Connect via a pgadmin, then log in as the tdm user and run the contents of TDMGUI/createTDMDB/k2vtdm2.sql and TDMGUI/createTDMDB/k2vtdm3.sql

• Alternatively, you can copy the files to the pgsql console and run them with the psql command. The files are located under ~/ k2vtdm2.sql ~/ k2vtdm3.sql

  Example:

  cd ~/
  psql -d TDMDB -a -f ~/k2vtdm2.sql
  psql -d TDMDB -a -f ~/k2vtdm3.sql

How to Connect From pgadmib4 in TLS Mode

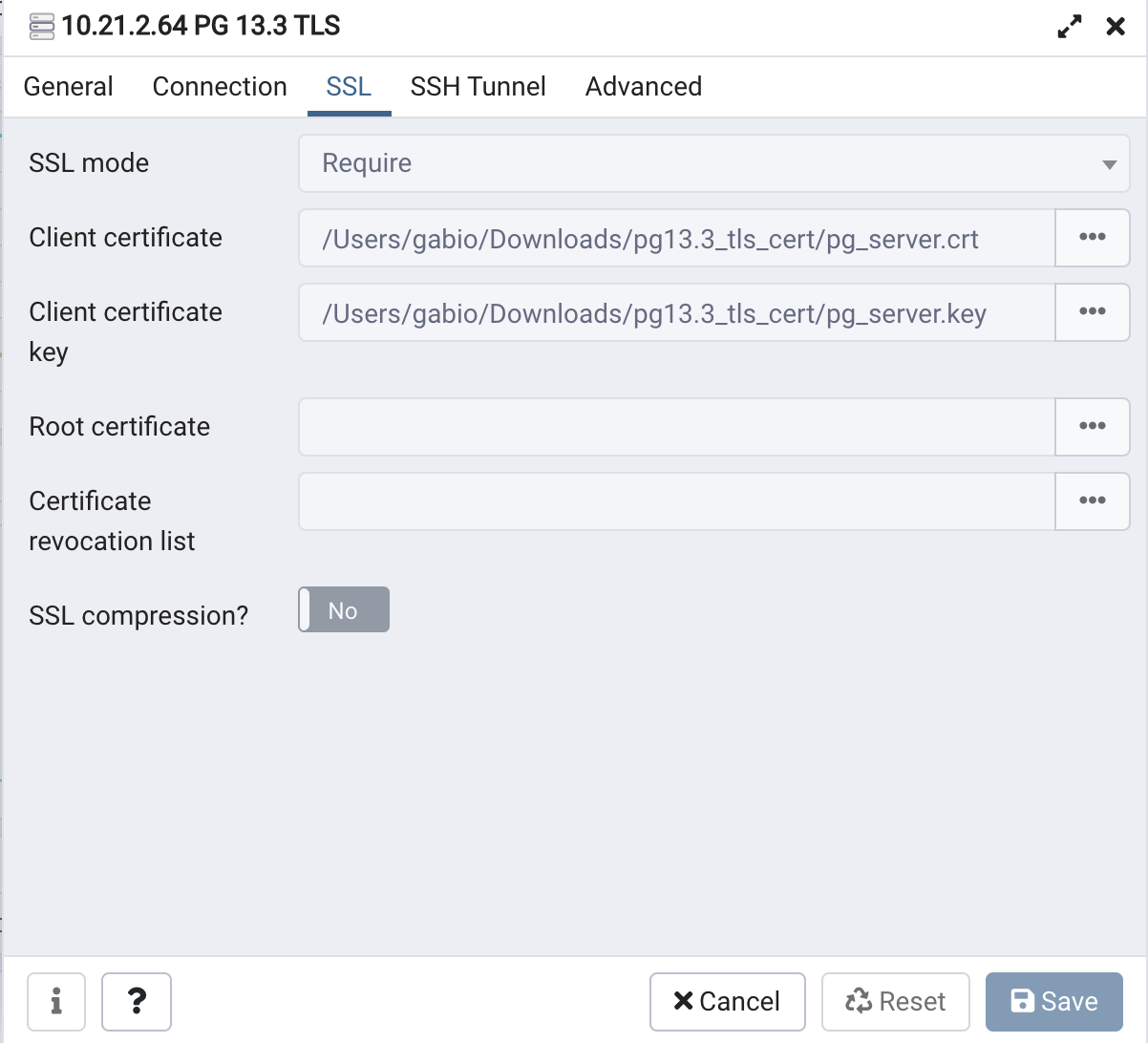

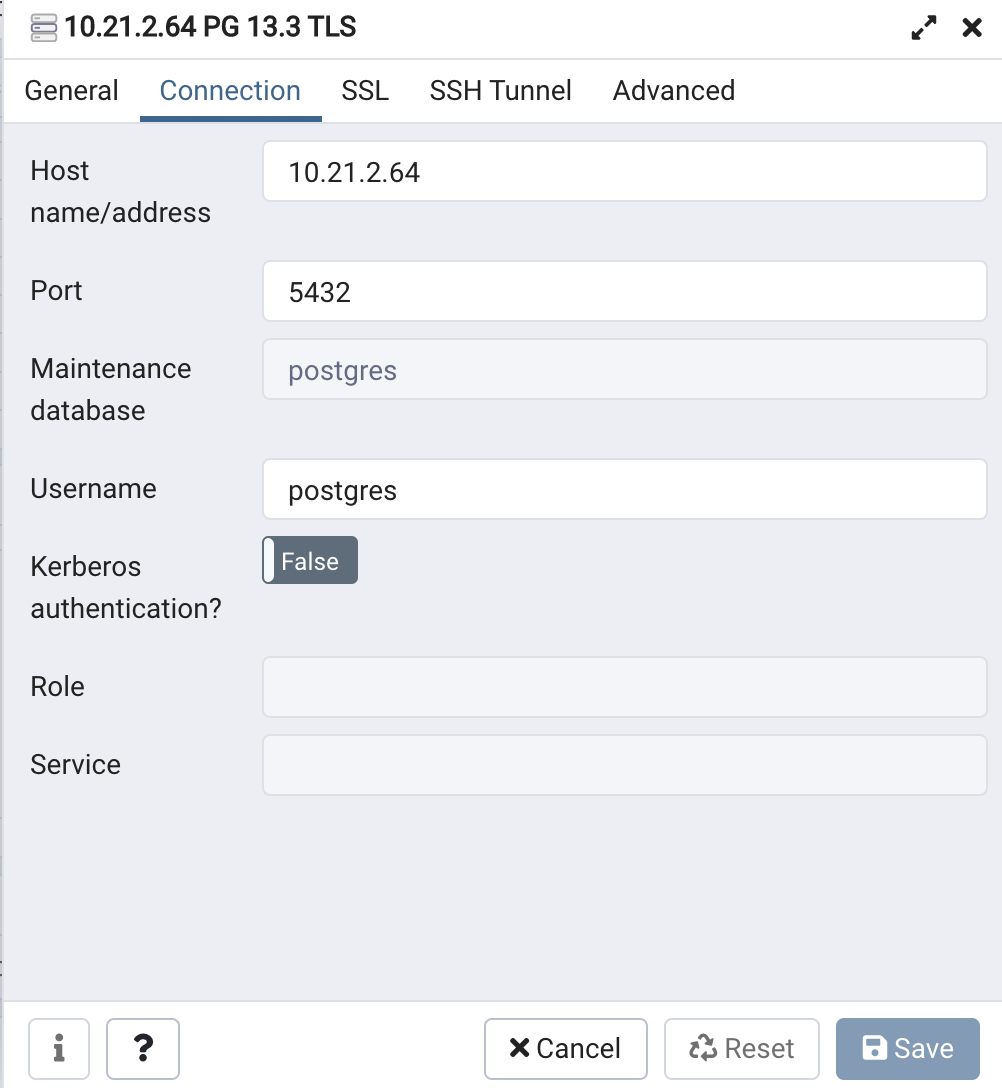

Connect via a pgadmin and set this up as shown in the below example:

Check that the Connection is Secure

• From the server side, run the following command from the console:

echo "SELECT datname,usename, ssl, client_addr FROM pg_stat_ssl JOIN pg_stat_activity ON pg_stat_ssl.pid = pg_stat_activity.pid;" | psql

• The output should look like the following:

datname  | usename  | ssl |  client_addr
----------+----------+-----+---------------
 postgres | postgres | t   | 10.212.134.59
 postgres | postgres | t   | 10.212.134.59
 postgres | postgres | t   | 10.212.134.59
 postgres | postgres | t   | 10.212.134.59
 pgsql    | pgsql    | f   |
(5 rows)

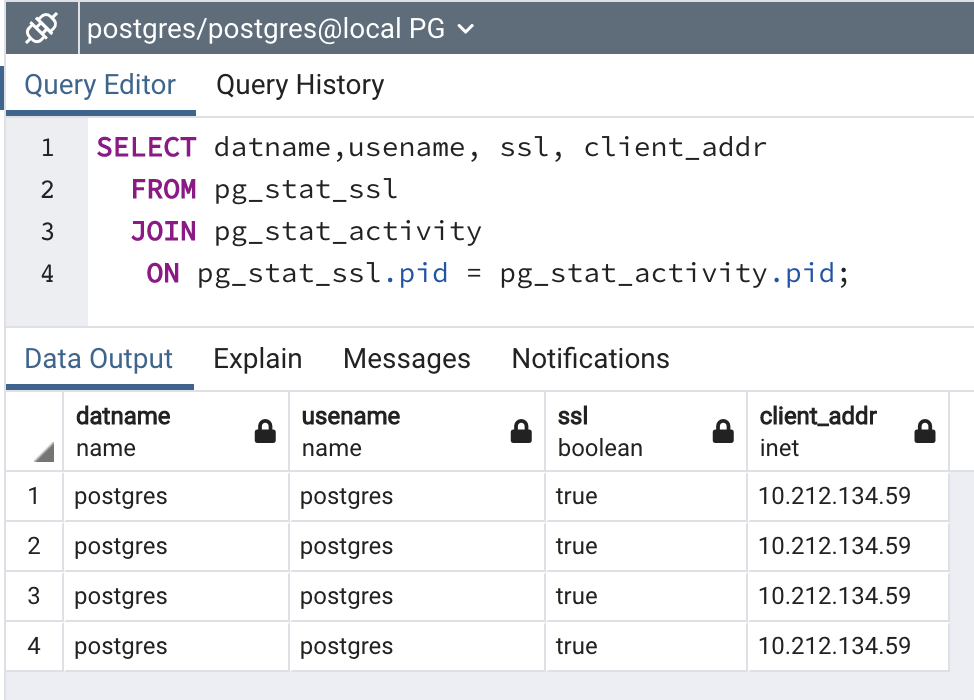

• As a pgadmin, run the following script:

  SELECT datname,usename, ssl, client_addr
  FROM pg_stat_ssl
  JOIN pg_stat_activity
  ON pg_stat_ssl.pid = pg_stat_activity.pid;

​

Fabric Implementation Guidelines

Edit the TDM Interface

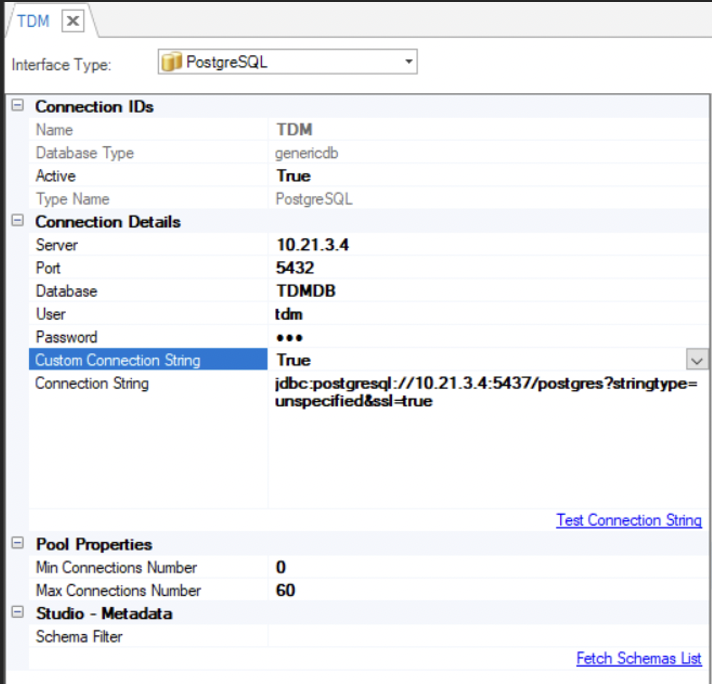

• Set the Custom Connection String setting to true and add &ssl=true to the connection string.

  Example:



  Verify that the TDM interface is defined using the Generic DB format (Database Type is genericdb).

• Redeploy the project to Fabric.

Edit the Environments

• Open and edit all Environments: check the Custom Connection String checkbox of the TDM interface and add &ssl=true to the TDM’s connection string.
• Redeploy the Environments to Fabric.
