In-Place Masking Customization — Implementation Guidelines
In-place Masking Flow
- Starting with TDM 9.5 onwards, the TDM supports in-place masking task updates the PII fields on the selected tables. The in-place masking flow receives a list of input parameters from the TDM execution processes and updates the table: replaces the PII values with masking values.
- Duplicate the UpdateTableByQuery flow (located in the TDM_TableLevel LU) to implement the customization of the in-place masking flow.
In-place Masking Flow - Error Handler
Starting with TDM 9.5, the DbErrorHandlerBatch and DbFlushBatch Actors are added to the UpdateTableByQuery flow. These Actors provide enhanced batch-level error handling and enable task execution to ignore predefined database errors—such as unique constraint violations—while continuing to process subsequent records without interruption. In addition, successfully processed records are committed to the target database even when some records fail, preventing a full task rollback due to partial errors.
TDM flows use a custom version on these Actors:
- TDMDbErrorHandlerBatch
- TDMDbFlushBatch
These custom actors have the __active_environment input parameter populated with the value target.
Similar to the DbCommand and DbLoad actors, setting the __active_environment parameter refreshes the environment, switches it to the target environment within the load flow, and ensures the load operation runs against the target database.
Within the UpdateTableByQuery flow, the TDMDbErrorHandlerBatch actor suppresses unique constraint errors and reports them to the TDM database using the PopulatePartitionTableErrorsOnly inner flow.
Add a TDMDbErrorHandlerBatch actor for each interface and populate the __active_environment input parameter with target to include error handling in a customized load flow, The actor must be included in the same transaction as the DbLoad or DbCommand actor.

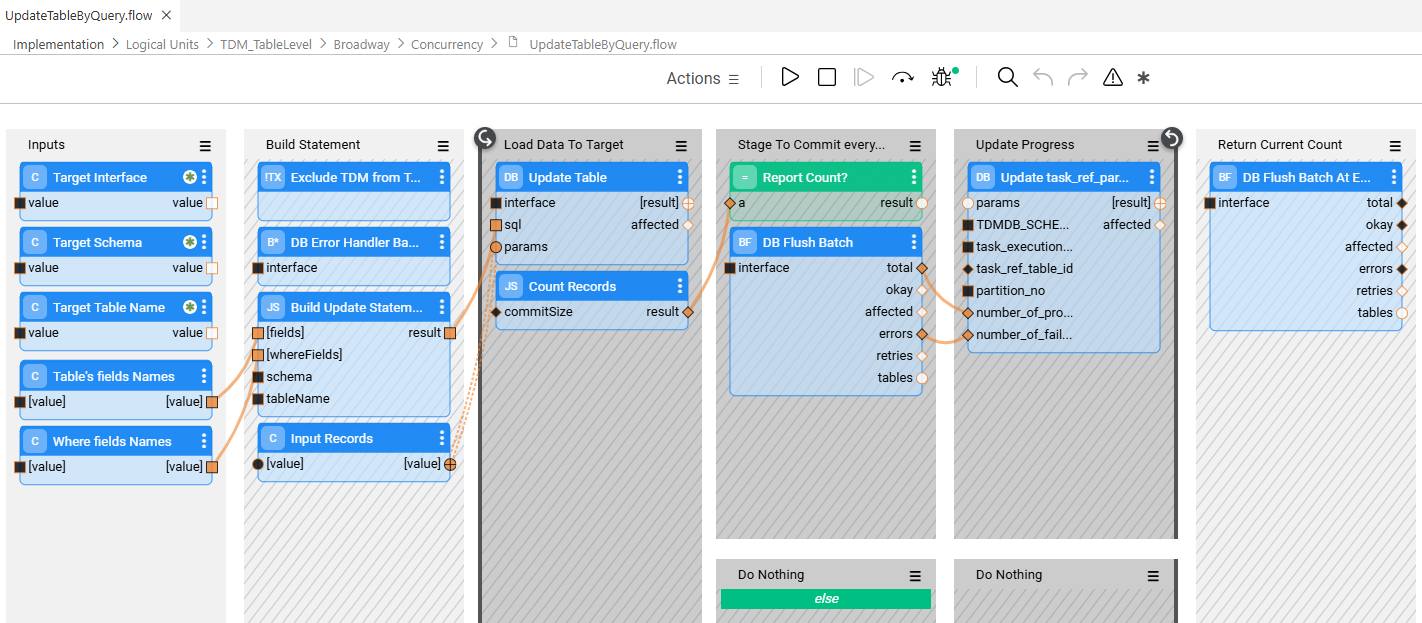

See the example below:
- Note:
- In databases that automatically abort a transaction when an error occurs (for example, PostgreSQL), further processing within the same transaction is not possible. As a result, the affected table partition is not loaded.
In-place Masking - MTables
TableLevelDefinitions
The following field has been added for in-place masking:
- inplace_masking_update_flow — populated with the in-place masking flow name.
Click here for more information about the TableLeveDefinitions fields.
TableLevelInPlaceMasking
The MTable defines which table fields are used as key fields during table update operations.
Each record in the MTable represents a single table field. When a composite key is required, multiple MTable records must be defined—one for each table field that participates in the composite key.
