Fabric Web Services Security

Authentication Methods

Fabric secures and controls Web Services (WS) access via an authentication and authorization mechanism in which each API call must be verified.

Fabric supports several methods for that purpose:

  1. API Key - a token which is sent as Authorization: Bearer header

  2. JWT (JSON Web Tokens) - an open industry standard method (RFC 7519) that represents claims between two parties in a secured manner.

    The JWT authentication has 2 variant types:

    a. Signed by Fabric

    b. Signed by the WS client

    Although the preferred way to send the JWT authentication is as an Authorization: Bearer header, it can also be sent as a cookie.

  3. Open Auth (OAuth) - an authorization delegation protocol. An OAuth Access Token is a string used by a client to make requests to Fabric. This token (self-encoded JWT) is sent as Authorization: Bearer header.

  4. Basic Authentication - an authentication method built into an HTTP protocol. A client provides a username and a password to make requests to Fabric. These credentials are sent as Authorization: Basic header.

API Key

API key authentication is the simplest method because it can authenticate WS calls simply by including a single key, which also allows a client to make calls easily from various origins.

The API Key is sent as the token value of the Authorization: Bearer header, for example: Authorization: Bearer ABC, where the API Key is "ABC".

See here how to generate an API Key.

The authorization and permissions are assigned according to the roles associated with the API Key and its corresponding permissions. See here for more information about API Keys, roles, and permissions.

JWT: Signed by Fabric

The authentication flow for this method works as follows:

  1. Create an API Key. See here for instructions. To indicate that JWT is signed by Fabric, do not select the "secured" option.

  2. Make a first POST call to the Fabric server's endpoint: <SERVER-HOST>:<SERVER-PORT>/api/authenticate, where it provides one of the following credentials in the post body:

    • user/password, using the pattern: {"username": "<USER>", "password": "<PASSWORD>"}.
    • API Key, using the pattern: {"apikey": "<APIKEY>"}. See here how to generate an API Key (choose the "non secured" key).
  3. Upon authentication success, Fabric responds with {"response": "OK"} (within 201 response code), along with the JWT, which is returned as a cookie.

  4. Make the following web services calls by sending this JWT as the token value of the Authorization: Bearer header or as a cookie, as part of each request. If requests are made via the browser, this cookie is already stored in the browser.

    When used in the cookie, the JWT expiration is automatically extended on each call, whereas it is not extended when using the Bearer header to pass the JWT.

The authorization and permissions are performed according to the credentials provided during the initial "/api/authenticate" call, either by the user or the API Key, along with the assigned roles for each. See here for more information about API Keys, roles, and permissions.

JWT: Signed by the WS Client

The authentication flow for this method works as follows:

  1. Create an API Key. See here for instructions. Select the "secured" option, indicating that this is the client signing method. In such a case, the "/api/authenticate" call, using the API Key, will be rejected, because this call is only available for cases where Fabric signs the JWT.
  2. Generate a JWT, where:
    • It must include an "apk" claim with the value of the API Key, as part of the JWT payload.
    • The secret key, provided by Fabric during the API Key generation, must be used to sign the JWT.
    • JWT is signed using HMAC-SHA256.
    • The client maintains the JWT's expiration time.
  3. Make the web services calls by sending this JWT as the token value of the Authorization: Bearer header.
  4. Fabric verifies that the JWT is signed with the secret that matches the "apk".

The authorization and permissions are assigned according to the roles associated with the API Key and its corresponding permissions. See here for more information about API Keys, roles, and permissions.

External Trusted Authentication

In some cases, the client itself, a service within the organization that calls Fabric, has already authenticated the user (human or another system). For example, the client can be a service that interacts with an IDP (Identity Provider) to authenticate users by using SAML. In such a case, the client holds the actual user and the groups to which they are assigned, and upon which Fabric is to act. For example, Fabric uses this information for role permissions.

Fabric supports these delegated authentications:

  • This option requires an extra security verification:

    • Create a dedicated role (for example: "apikeyWithSAML") and grant it a permission for the "AUTHZ_CLAIMS" operation on all resources ("*").
    • Assign this role to the API Key that is used and sent in the JWT.
  • The user and group lists shall be sent as part of the JWT payload claims - unm for the user and bgr for the group list, using an array structure. Here is a JWT example:

  {
      "apk": "apikeyWithSAML",
      "unm": "jhon.doe@k2view.com",
      "bgr": [
          "tester1",
          "testGroupLeaders"
      ]
  }
  • When JWT is verified, Fabric sets the session with this user and roles by taking the groups and setting them as user's roles for this session.

Open Auth (OAuth)

Fabric supports the standard Open Auth (OAuth) protocol for its web services authorization. Using the OAuth requires the following preparations:

  • Set the JWK endpoint in the config.ini, using the JWK_ENDPOINT parameter located under the oauth2 section. It should look like the following:
  [oauth2]
  ## The JSON Web Key (JWK)'s endpoint that holds the keys for the access token (JWT) verification
  JWK_ENDPOINT=https://<auth-server>/jwks
  • Grant permissions according to scopes provided in an access token:
    1. Create roles for the scopes - each scope should be mapped to a Fabric role.
    2. Grant permission to each role as required.

By default, it is expected that the scope's claim name is "scope". If another is sent, add this parameter ACCESS_TOKEN_SCOPE_PROPERTY_NAME to the config.ini and set its value (for example: ACCESS_TOKEN_SCOPE_PROPERTY_NAME="scp" ).

Fabric extends the standard OAuth authorization capabilities beyond the provided scopes: The access token (JWT) can be sent with an extra optional payload parameter, representing the client ID. This ID should be mapped to APIKEY in Fabric, and it should be granted the necessary permissions. By default, the name of this optional parameter is "client_id".

Fabric adheres to the OAuth standards for verifying web service API calls. When a client requests a web service:

  1. Fabric looks for a JWT access token at the Authorization: Bearer header.
  2. Fabric decodes the JWT and looks for the "kid" parameter.
  3. Fabric looks for the "kid" parameter in the JWK set; the set, which is published by the Authorization server, is gained by Fabric.
  4. Fabric verifies the JWT using the JWK matching key.

Note: Fabric, as the Resource Server, supports both OAuth grant types, i.e., Authorization Code and Client Credentials.

Basic Authentication

Basic authentication, also known as Basic Access Authentication, is a method for an HTTP user-agent to authenticate itself by providing a username and password when making a request. The client sends HTTP requests with the Authorization header that contains the word Basic followed by a space and a base64-encoded string of username:password.

Note: Basic authentication should only be used together with the HTTPS/SSL mechanism. For more information, refer to Fabric Hardening.

The authorization and permissions are assigned according to the roles assigned to the user and their associated permissions. See here for more information about API Keys, roles, and permissions.

Browser Calls Helper

The Fabric Basic Authentication mechanism provides a helper when calls are originated from a web browser that does not support sending request headers.

To activate the helper, add this additional parameter to the web service request: basicAuth=true.

When activated, a browser pop-up will appear when the request is sent. The user can populate the pop-up fields with the username and password.

Generating API Key

There are two options to generate an API key: either via the Web Framework Admin or by using a Fabric command. In both cases, you can choose whether the API Key shall be secured or not, as described below.

  • Web Framework Admin:

    1. Open the Admin Panel web page and select Admin > Security and then click the API keys tab.

    2. Click the Add API Key + button on the upper right of the window.

    3. Fill in the Name (Mandatory) and choose if it shall be secured (Optional) by using the checkbox on the page.

    4. Click Save.

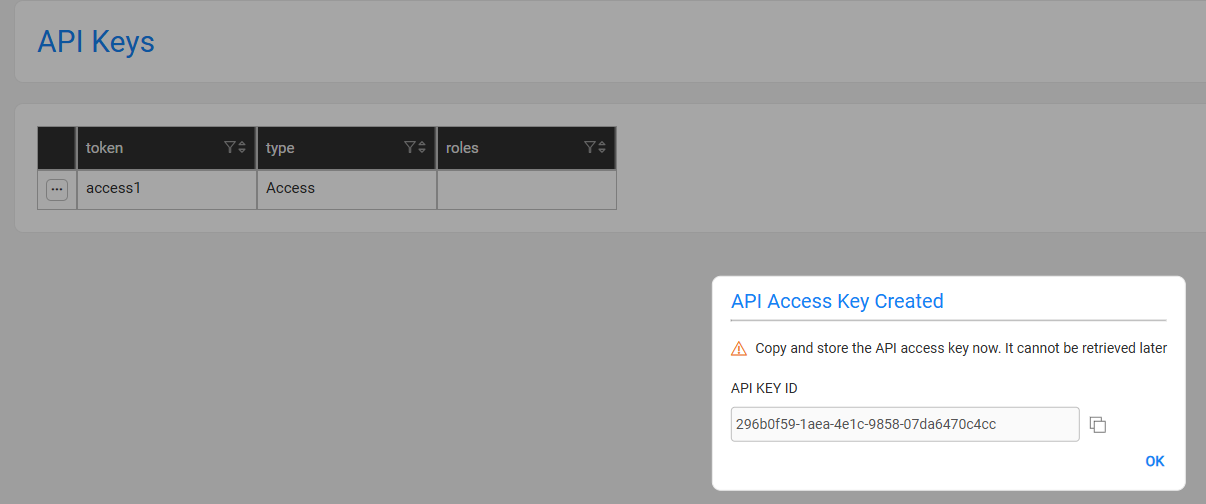

    When the secured option has been selected, the secret key is displayed in a pop-up window and can be copied for later use. The secret key is used to sign the JWT.

    For example:

  • Fabric command: CREATE TOKEN <'token_name'> [SECURED]. When "SECURED" is used, the secret key is retrieved.

    For example:

  create token 'Secured1' SECURED;

  |Secretkey                           |
  +------------------------------------+
  |c55a86d1-9de6-4aaa-bf9e-cedf1391c95b|

If the secured option has not been selected, the token name is used as the token value for the API Key Authentication method.

Web Service Authorization & Permissions

Web services authentication is done either by user or by API key, where each can be assigned to roles and accordingly to permissions.

Read this article for the list of supported roles, and then click here to learn how to grant permissions to specific roles.
